ETONE High-APJ Series

Marketed and supported across India by Magal Engineering Co. India Pvt. Ltd.

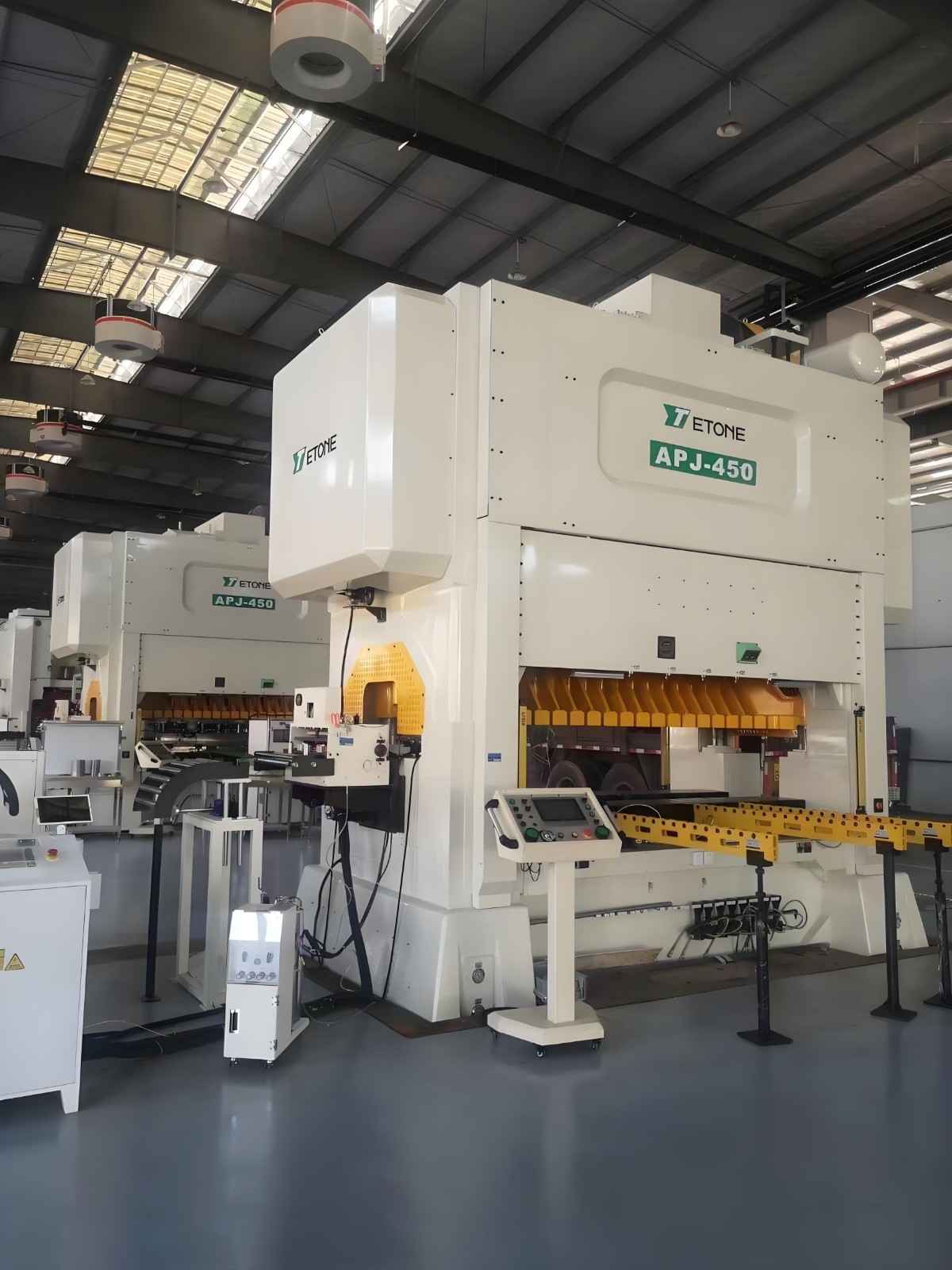

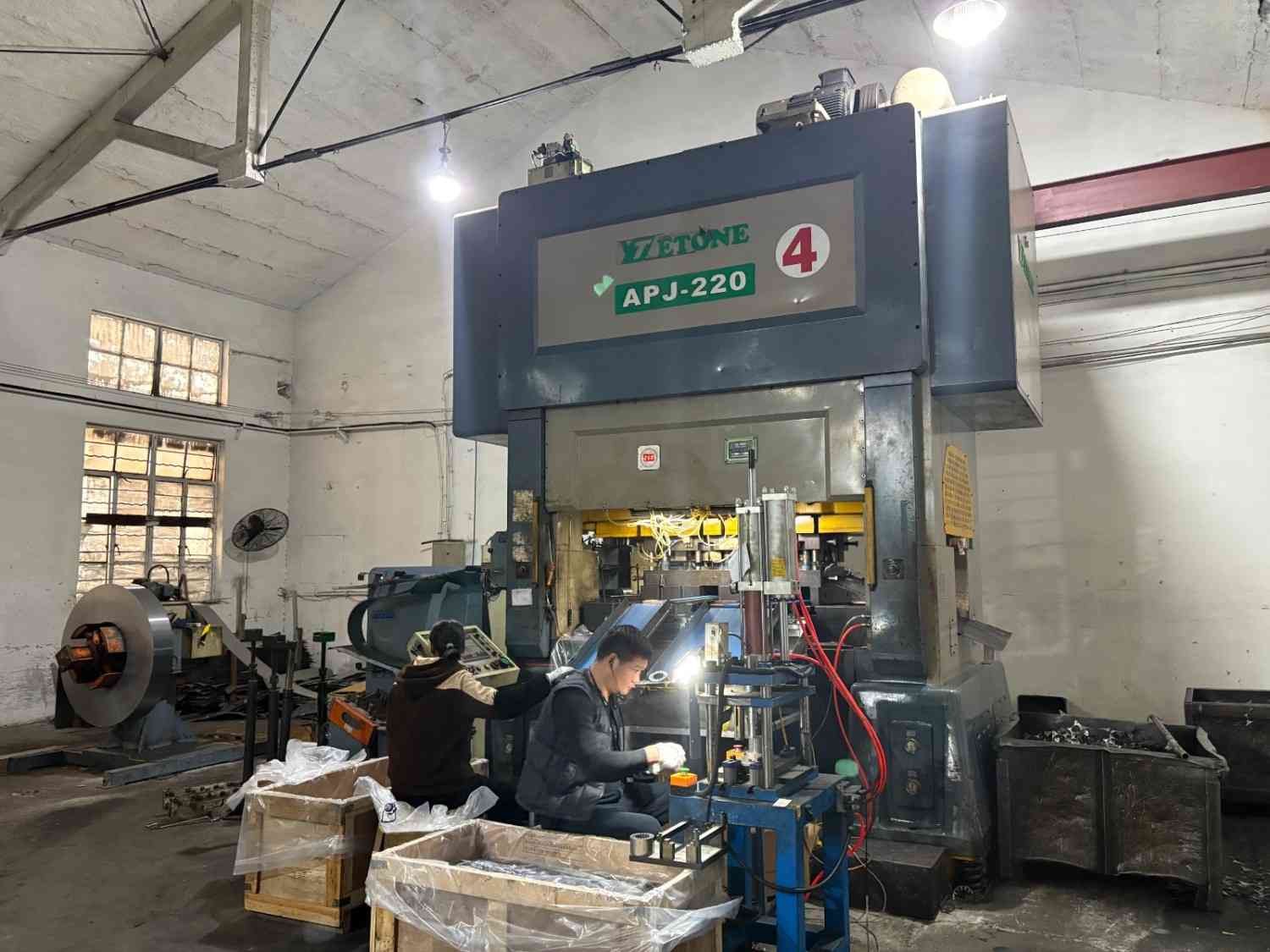

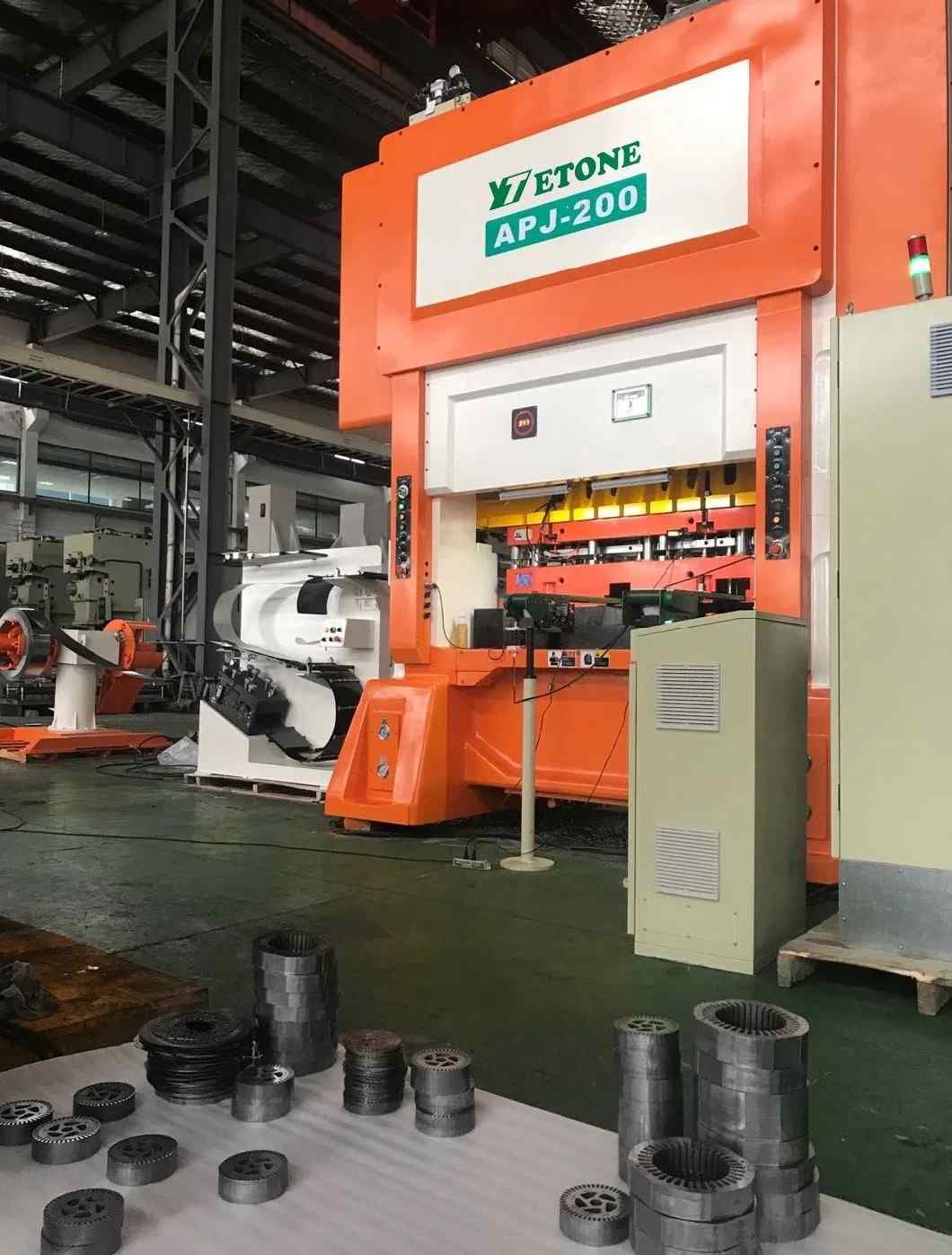

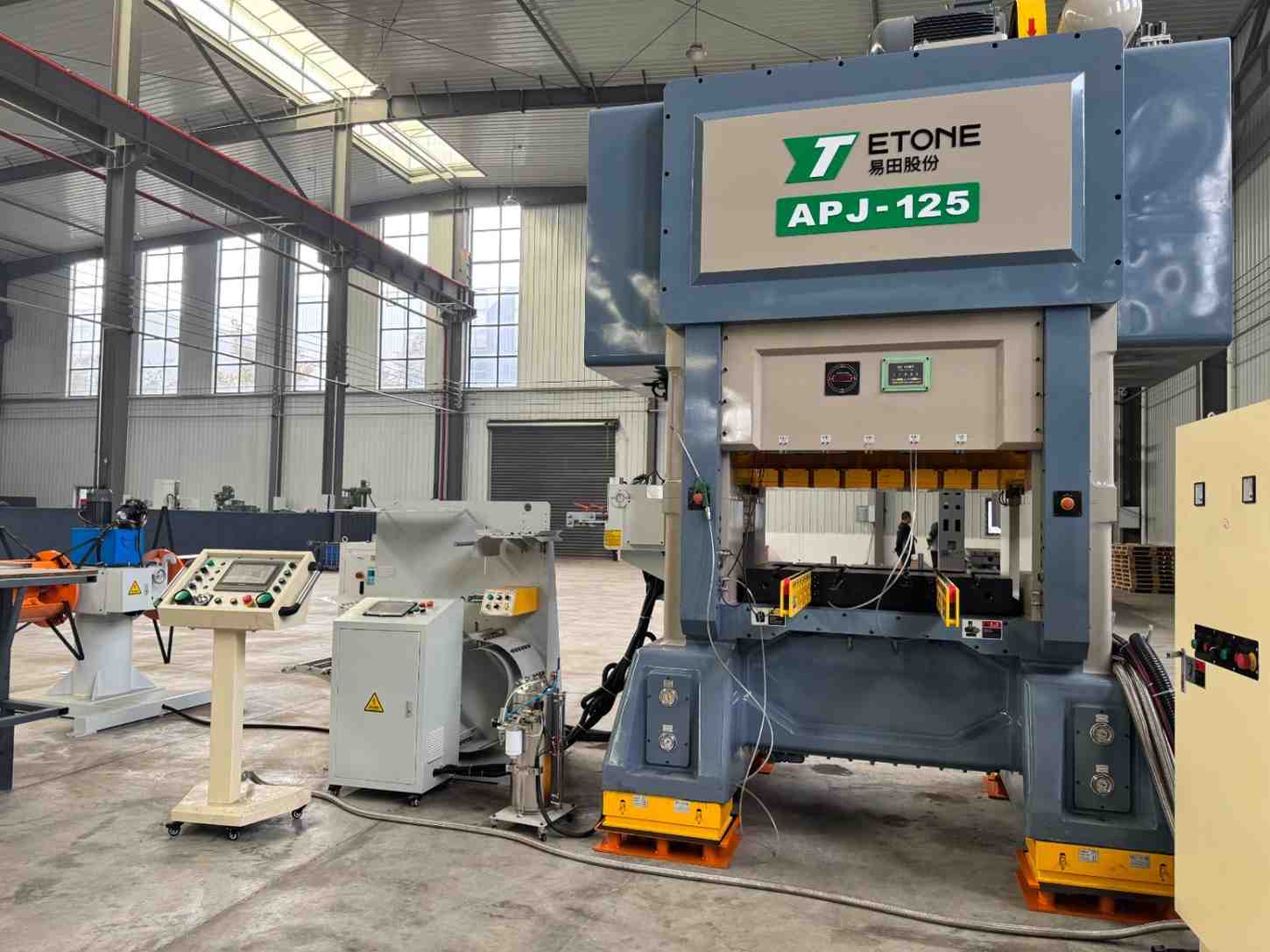

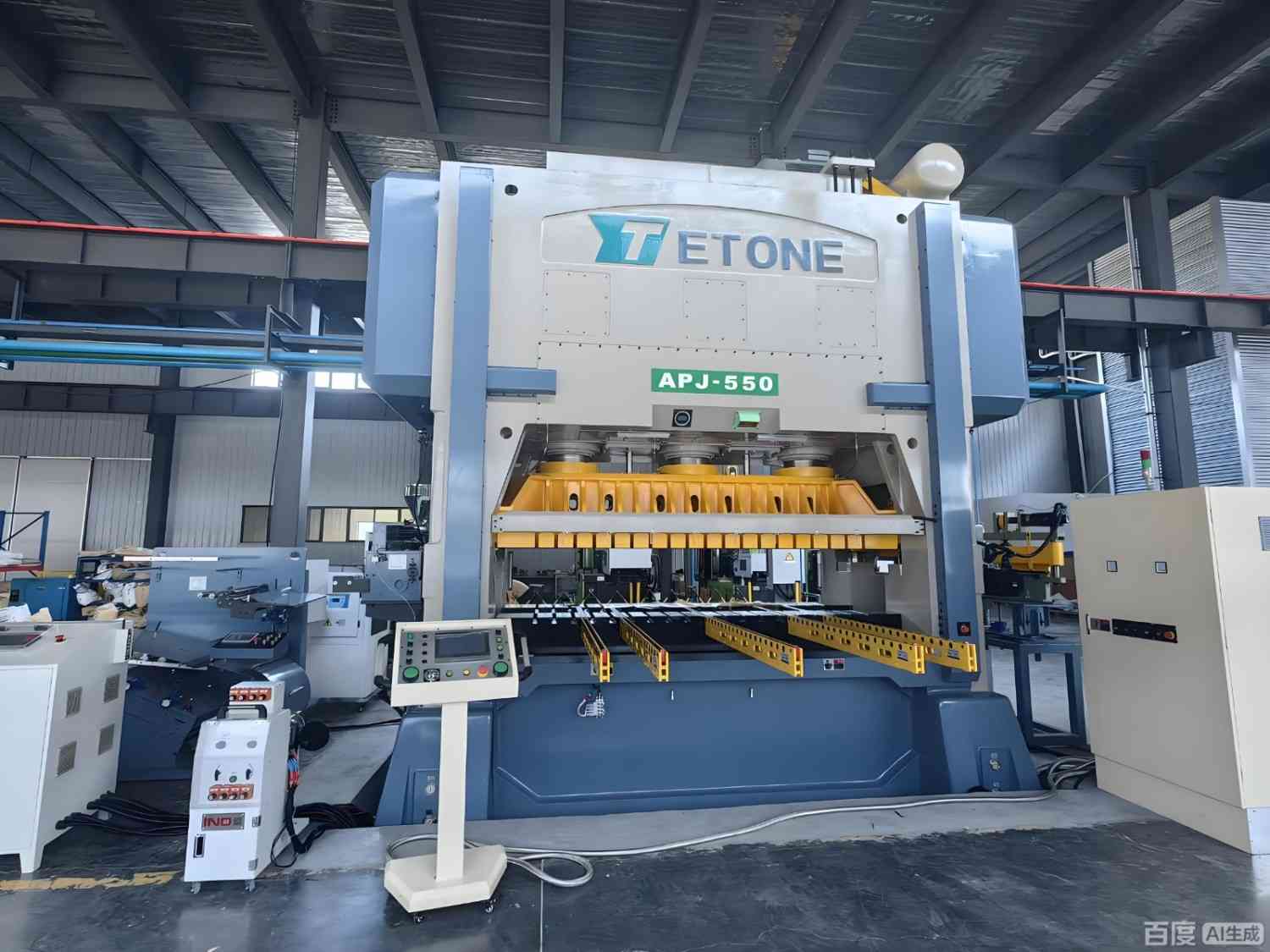

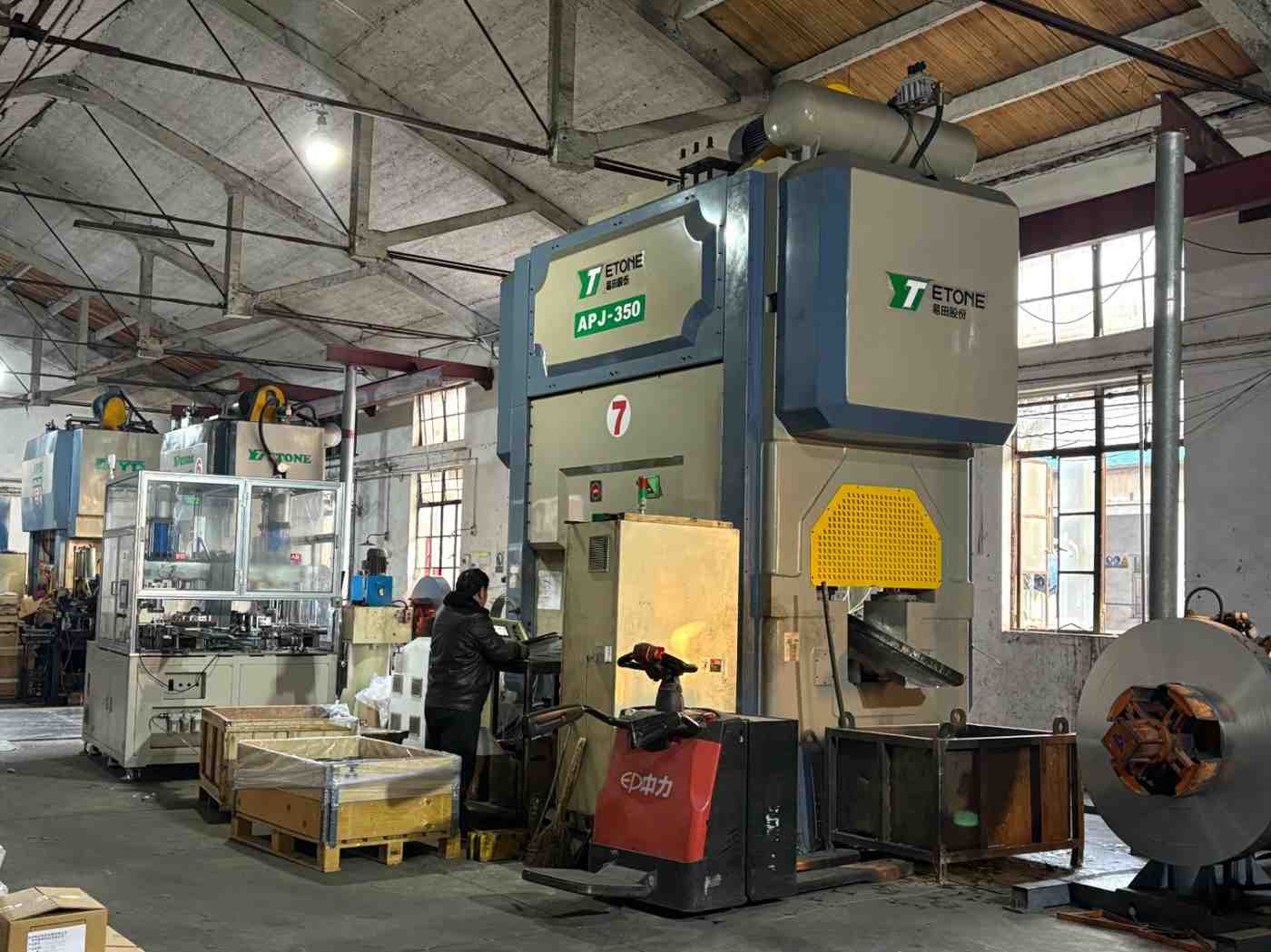

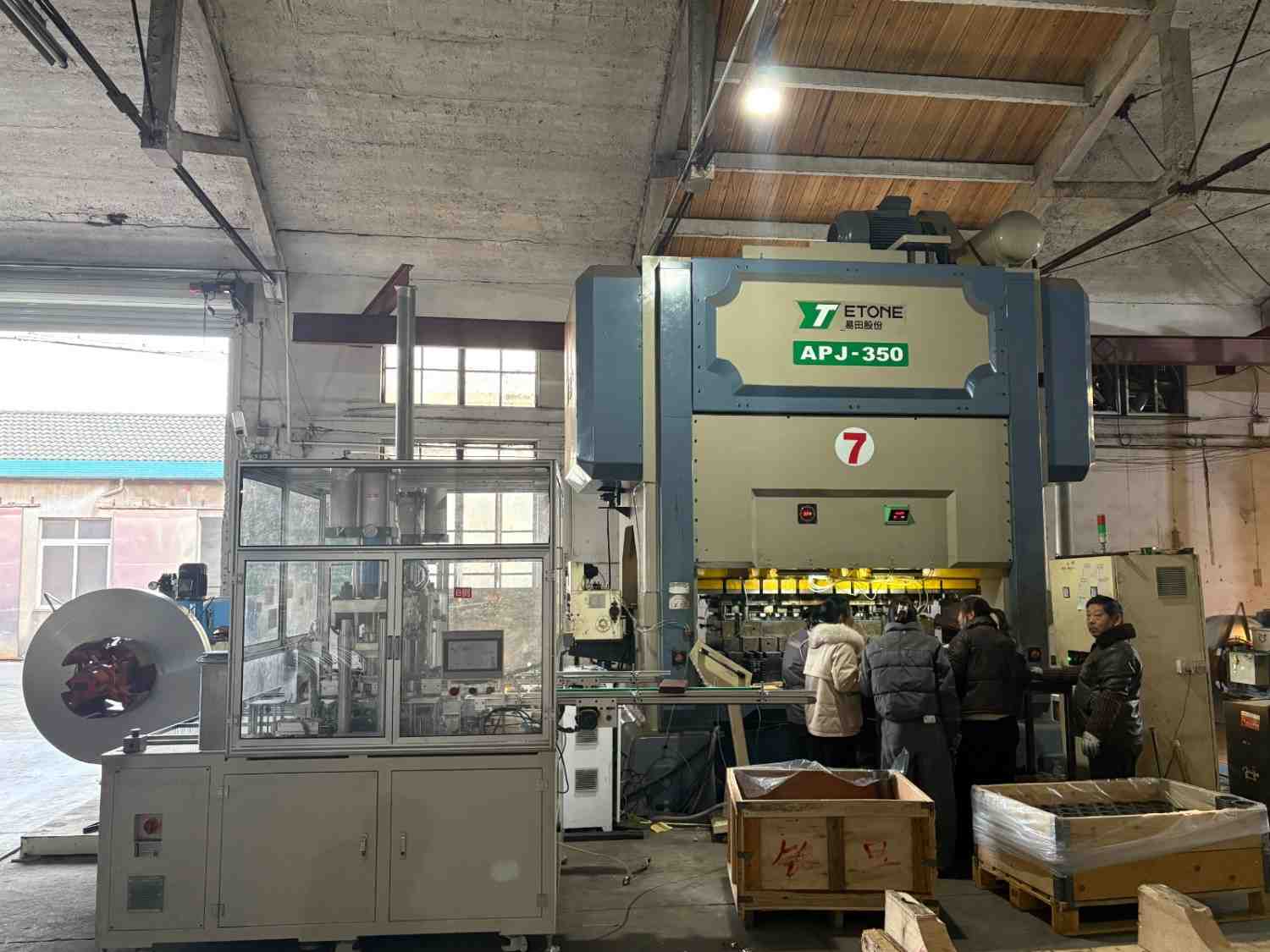

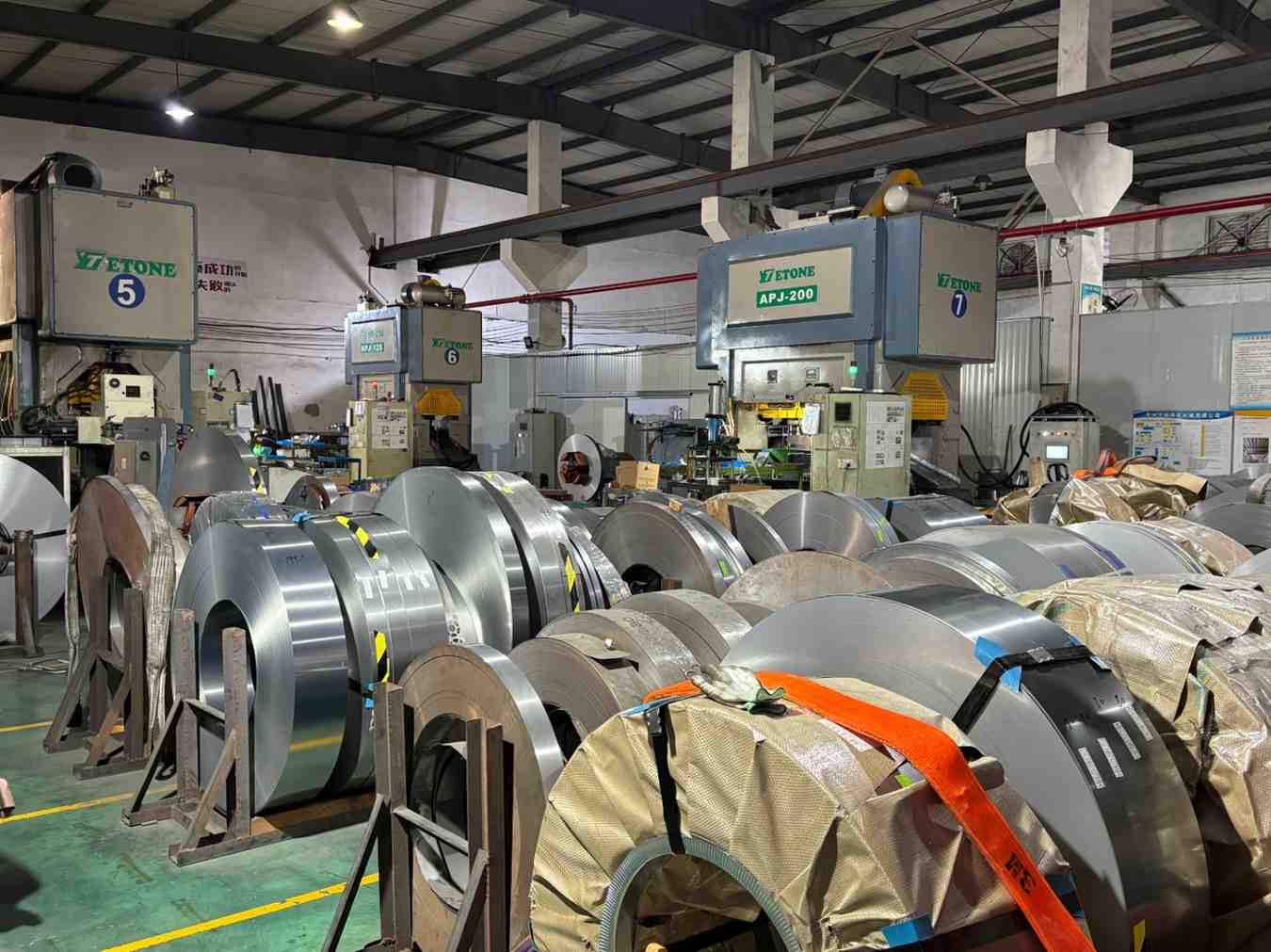

ETONE APJ Series – High Speed Precision Gantry Press

The ETONE APJ Series is a gantry-type high-speed precision st

amping press specifically designed for high-speed lamination stamping, motor core production, electrical steel stamping, and precision progressive die applications. It combines ultra-high-speed operation with excellent rigidity, low vibration, and high repeatability.

Key Technical Features

• Gantry-type four-pillar precision structure for balanced load di

• stribution.

• High-alloy cast frame with computer-optimized, internal stress-relieved construction.

• Precision die height adjustment with 0.01 mm display accuracy.

• Italian OMPi integrated clutch and brake system for reliable high-speed performance.

• Automatic lubrication system with oil cooling cycle for extended machine life.

• Mold memory function capable of storing up to 30 die setups.

Available Tonnage Range

• Speed Range: Up to 800 SPM (Strokes Per Minute) depending on model and stroke configuration. Larger tonnage models operate at optimized speeds for stability and die protection.

Standard & Optional Configurations

• Standard Features: Inching positioning device, Batch control, Feed error detection, Hydraulic slide lock, Main motor inverter control, and Work lighting.

• Optional Features: Bottom dead center detector, Quick die clamping, Hydraulic die lifters, High-speed servo feeders, Soundproof safety enclosures, and Shockproof foundations.

Commercial Positioning: “The ETONE APJ Series is engineered for manufacturers requiring ultra-high-speed precision stamping with maximum frame rigidity, long die life, and automation-ready production capability.”
